The Hallmarking Process


Hallmarking is a simple three step process

Sampling and Assaying

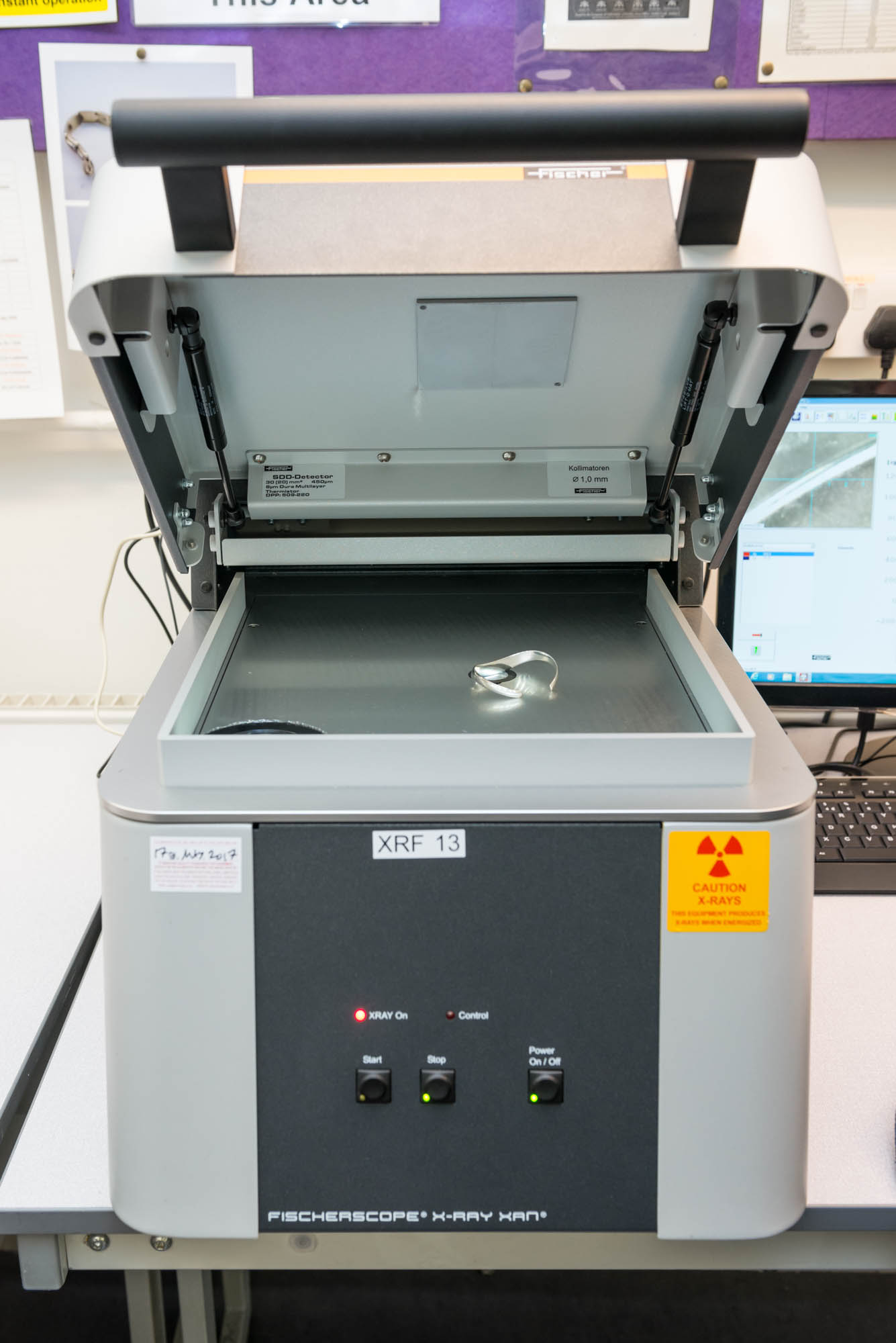

X-ray Flourescence Spectrometer (XRF)

Sampling is the selection of articles from the packets which will then be assayed. This is done according to set sampling rates based on detailed statistical analysis.

Assaying is the analysis of an article's composition. These days the vast majority of assaying is carried out by X-ray Flourescence Spectroscopy (XRF) which is a entirely non-destructive technique and gives the fineness of the metal in less than 30 seconds.

Occasionally, traditional methods for assaying are used which include touch stone testing, cuppelation, silver titration, and platinum and palladium testing using the ICP-OES (Inductively Coupled Plasma Optical Emission Spectroscopy).

For all the traditional methods excluding touch testing,  a physical sample must be taken from the article by scraping/drawing.

  • Gold cupellation - A 2000 year old small refining process where the pure gold portion of a gold alloy is separated from the base metals in order to calculate the % gold content overall.
  • Silver titration - Analysis of the pure silver portion within a silver alloy. Platinum and palladium testing using the ICP-OES (Inductively Coupled Plasma Optical Emission Spectroscopy).  See more in the video Guardians of Gold below.
  • Touch testing dates from 500BC. We first used the technique alongside physical removal of sample to determine homogeneity. Still used for big packets. Traditional sampling involves a series of ‘touch tests’. In the touch testing process, the articles are lightly rubbed onto a ‘touchstone’ made from basonite.  This leaves a thin smear of material on the stone. Chemicals are applied to the smear and from the reaction that takes place, an initial indication of the fineness is determined.  This is the origin of the phrase "coming up to scratch".


Touch testing - basonite touchstones pictured

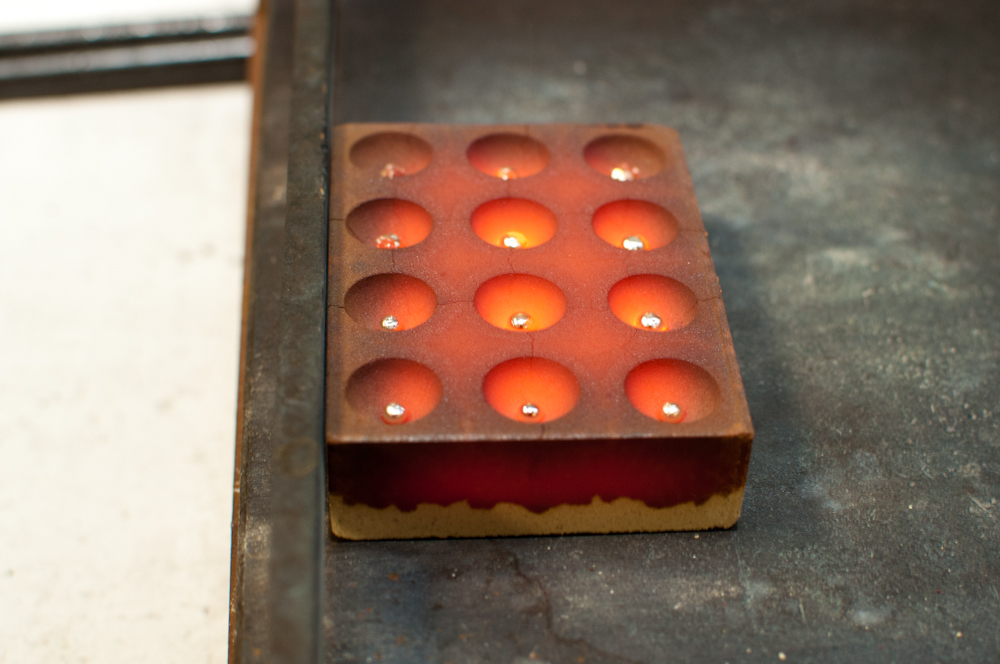

Cupellation

Marking

There are Three Types of Marking:

  • Hand marking: Traditional Struck hallmarking by punch and hammer
  • Press marking: Traditional fly press or air press marking
  • Laser marking: the most recent method of applying the hallmark

Read about Methods of Marking here.

A further guide to the hallmarking process can be found here

Once your work is hallmarked, you are part of our trade’s legacy and are supporting its permanence.  Congratulations!

Don’t forget that every new registrant is offered a free tour of the Assay Office. It is a great way to see behind the scenes of a working assay office.

Stack of punches
